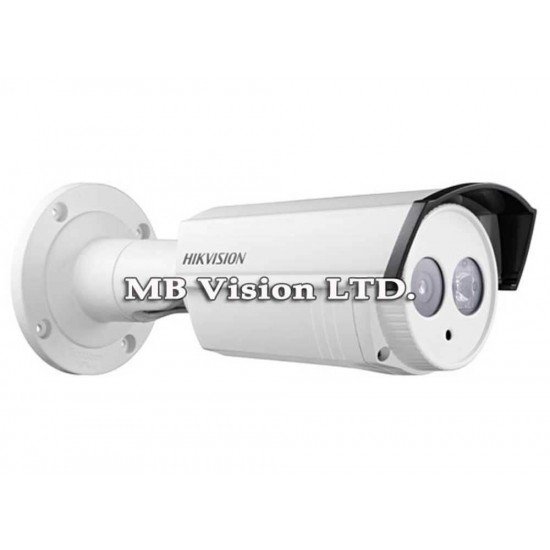

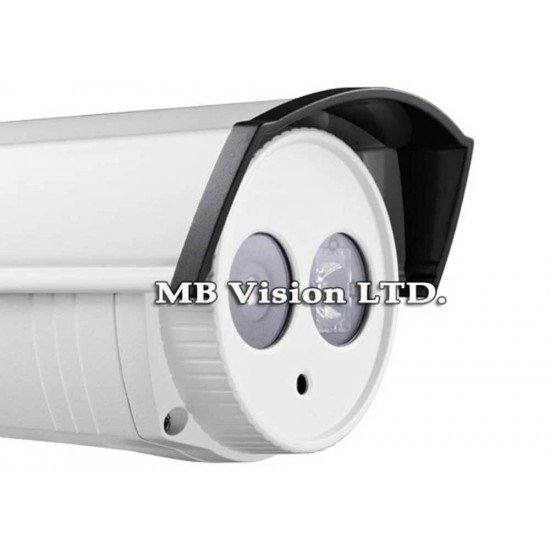

HD-TVI корпусна камера 1.3 Мегапиксела (HD 720p@25 кад/сек)1/3'' Progressive Scan CMOS сензор0.01 Luxобектив 3.6 ммEXIR технология с обхват до 40 м (Smart IR)механичен IR филтърDWDR3D DNR шумов филтърOSD меню с контрол по коаксиалния кабелза външен монтаж (IP66) -10~60C12Vdc/4.5WCamera
Image Sensor: 1/3" Progressive Scan CMOSEffective Pixels: 1305 (H) × 1049 (V)Min. Illumination: 0.001 Lux @(F1.2,AGC ON), 0 Lux with IRShutter Time: 1/50(1/60)s to 1/50,000sLens: 3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mm optional)Angle of View:71.43°(3.6mm), 92.45°(2.8mm), 46.9°(6mm), 34.5°(8mm), 22.81°(12mm), 17.2°(16mm)Lens Mount: M12Day& Night: IR cut filter with auto switchVideo
Frame Rate: 720p@50fps/720p@60fpsHD Video Output: 1 Analog HD outputSynchronization: Internal SynchronizationVideo Output: 1Vp-p Composite Output (75Ω/BNC)S/N Ratio: More than 62 dBUp the Coax: SupportMenu
D/N Mode: Color/BW/SMART IRAuto White Balance: Auto / ManualPrivate Mask: On/Off, maximum 8 zonesMotion Detection: On/Off, maximum 4 zonesAGC: SupportLanguage: English/ChineseFunction: Digital Wide Dynamic Range, 3D Digital Noise Reduction, Sharpness, Brightness, Digital Zoom, MirrorGeneral
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)Humidity 90% or less (non-condensing)Power Supply: 12 V DC±10%Power Consumption: Max. 4.5WWeather Proof: IP66IR Range: Up to 40mDimension: 105×104.8×263.1mm(4.13” ×4.13” ×10.36”)Weight: 800 g (1.76 lb)Свали ръководство (EN) за модела в .pdf формат тук:
Приложение за мобилни телефони Android и Apple, както и за компютри с операционна система Windows за системите за видеонаблюдение Hikvision можете да свалите от тук:
