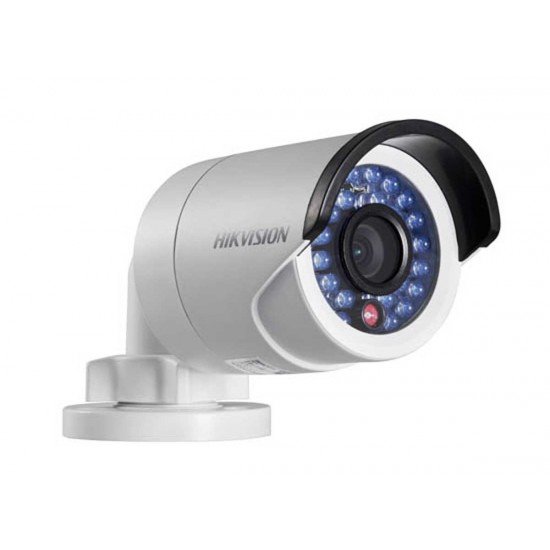

Мегапикселова IP камера Ден/Нощ с вградено IR осветление с обхват до 30 м
1.3 Мегапиксела (1280x960@25 кад/сек; HD 720p@25 кад/сек)1/3'' Progressive Scan CMOS сензор; 0.01 Lux (IR on)обектив 4 мммеханичен IR филтър3D DNR шумов филтърH.264/MJPEG dual stream компресия с регулиране на трафиказа външен монтаж (IP66) -30~60C12Vdc/PoEПодробни характеристики:
Camera
Image Sensor: 1/3" Progressive Scan CMOSMin. Illumination: 0.01 lux @F1.2, AGC ON, 0 lux with IRShutter time: 1/25s ~ 1/100,000sLens: 4mm@ F2.0 (6mm, 12mm optional)Angle of view: 73.1°(4mm), 46°(6mm), 22°(12mm)Lens Mount: M12Day& Night: IR cut filter with auto switchWide Dynamic Range: Digital WDRDigital noise reduction: 3D DNR
Compression Standard
Video Compression: H.264/M-JPEGBit Rate: 32 Kbps ~ 16 Mbps
Max. Image Resolution: 1280x960Frame Rate: 50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720), 25 fps (704 x 576), 25 fps (640 x 480) 60 Hz: 30 fps (1280 × 960), 30 fps (1280 x 720), 30 fps (704 x 576), 30 fps (640 x 480)Image Settings: Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browserBLC: Yes, zone configurableROI: Yes, up to 4 configurable areas
Network
Network Storage: NASAlarm Trigger: Motion detection, Dynamic analysis, Tampering alarmProtocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,BonjourSecurity: User authentication, watermarkSystem Compatibility: ONVIF, PSIA, CGI, ISAPI
Interface
Communication Interface: 1 RJ45 10M / 100M ethernet interfaceReset Button: Yes
General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)Humidity 95% or less (non-condensing)Power Supply: 12 VDC ± 10%, PoE (802.3af)Power Consumption: Max. 5 W (Max. 7 W with IR cut filter on)Weather Proof: IP66IR Range: Approx 20 to 30 meters(65.6-98.4ft)Dimensions: 60.4×76.9×139.28 mm (2.4” × 3.0” × 5.5”)Weight: 500g (1.1 lbs)Приложение за мобилни телефони Android и Apple, както и за компютри с операционна система Windows за системите за видеонаблюдение Hikvision можете да свалите от тук:
