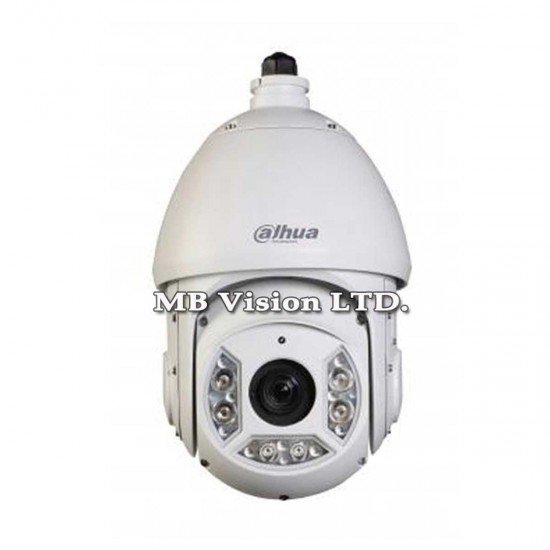

1MP HD-CVI PTZ камера, 20х DH-SD6C120I-HC

1MP HD-CVI PTZ камера, 20х DH-SD6C120I-HC
1MP HD-CVI PTZ камера, 20х DH-SD6C120I-HC
1MP HD-CVI PTZ камера, 20х DH-SD6C120I-HC
1MP HD-CVI PTZ камера, 20х DH-SD6C120I-HC
1MP HD-CVI PTZ камера, 20х DH-SD6C120I-HC
0 отзива - Напишете отзив
1,342.80лв. (€698.26)
Без ДДС: 1,119.00лв. (€581.88)
  • Наличност: Не е в наличност
  • Модел: DH-SD6C120I-HC
  • Тегло: 10.00
  • Модел: DH-SD6C120I-HC
Купи
Задай въпрос
Кратки характеристики:
  • 1 мегапикселова HD-CVI високоскоростна куполна камера
  • 20х оптично увеличение
  • 16х цифрово увеличение
  • 1/3” Exmor CMOS сензор
  • Day&Night с механичен IR филтър
  • инфрачервено осветление до 100м
  • 0.05 Lux в цветен режим
  • 0 Lux в ч/б режим (IR on)
  • 1280х720 с 50кад/сек некомпресиран сигнал
  • Pan 3600, Tilt от -15 до +900
  • 255 Preset позиции
  • управление по коаксиален кабел или RS-485
  • BLC, HLC, DWDR, ATW, AGC, 2D/3D DNR
  • маскиране на 24 зони
  • 2 алармени входа и 1 изход
  • 1 аудио вход
  • за външен монтаж
  • IP66
  • термостатиран кожух с вентилатор
  • отопление и стойка, 24VAC, 26W

    • Подробни характеристики:

  • 20x optical zoom
  • 25/30/50/60fps@720P resolution
  • DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Control over coaxial cable, long distance real-time transmission
  • Max 240°/s pan speed, 360° endless pan rotation
  • Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 2/1 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • IR Distance up to 100m
  • IP66, OSD
    • Camera
  • Image Sensor 1/3” Exmor CMOS
  • Effective Pixels 1280(H) x 960(V)
  • Scanning System Progressive
  • Electronic Shutter Speed 1/1 ~ 1/30,000s
  • Min. Illumination Color: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4; 0Lux (IR on)
  • S/N Ratio More than 50dB
  • Resolution 720P(25/30/50/60fps)
  • Video Output 1-channel BNC HDCVI high definition video output
    • Camera Features
  • Day/Night Auto(ICR) / Color / B/W
  • Backlight Compensation BLC / HLC / DWDR (Digital WDR)
  • White Balance Auto, ATW, Indoor, Outdoor, Manual
  • Gain Control Auto / Manual
  • Noise Reduction 2D/3D
  • Privacy Masking Up to 24 areas
  • Digital Zoom 16x
    • Lens
  • Focal Length 4.7mm~94mm(20x Optical zoom)
  • Max Aperture F1.4 ~ F2.6
  • Focus Control Auto / Manual
  • Angle of View H: 54.1° ~ 3.2°
  • Close Focus Distance 100mm~ 1000mm
    • PTZ
  • Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
  • Manual Control Speed Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s
  • Preset Speed Pan: 240° /s; Tilt: 200° /s
  • Preset 80(DH-SD), 255(Pelco-P/D)
  • PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
  • Speed Setup Human-oriented focal length/ speed adaptation
  • Power up Action Auto restore to previous PTZ and lens status after power failure
  • Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
  • Protocol DH-SD, Pelco-P/D (Auto recognition)
  • IR Distance 100m (2 near IR LED+ 4 far IR LED)
    • Audio
  • Interface 1 channel In
  • Auxiliary Interface
  • RS485 1
  • Alarm 2/1 channel In/Out
    • General
  • Power Supply AC 24V/3A (±10%)
  • Power Consumption 10.5W, 26W (IR on, Heater on)
  • Working Environment -40ºC ~ 60ºC / Less than 90% RH
  • Ingress Protection IP66
  • Vandal Resistance N/A

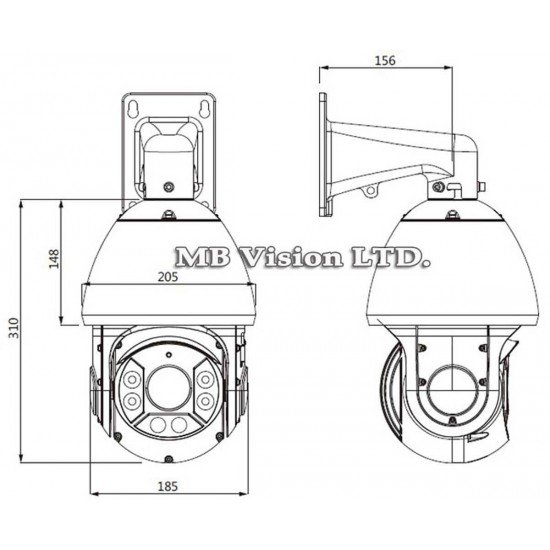

  • Dimensions Φ204.7(mm) x 335.9(mm)
  • Weight 7.5kg
