Кратки характеристики:

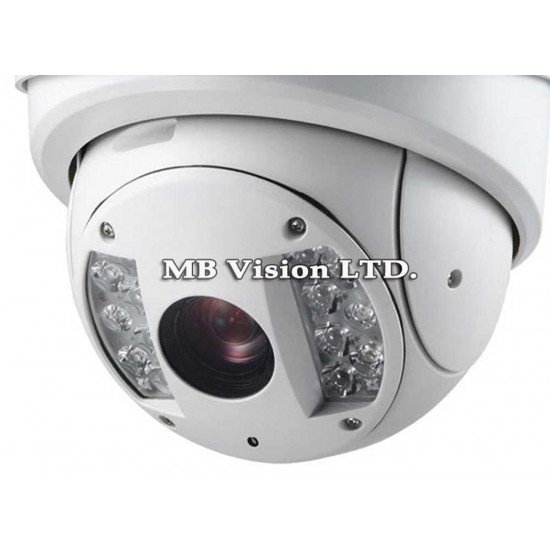

Управляема IP PTZ камера с IR осветление Ден/Нощ 2.0 Mегапиксела (FullHD 1920×1080@25 к/с) 1/2.8" Sony Progressive Scan CMOS 0.05Lux@F1.4 (Color), 0.005 Lux@F1.4 (B/W) 30X оптично/16X цифр. Увеличение интелигентно IR осветление до 120м. с автоматично регулиране в зависимост от увеличението WDR функция "Автоматично проследяване" (Smart Tracking) 256 preset позиции/24 зони за маскиране механичен IR филтър H.264 dual stream компресия аудио вход/изход 7 алармени входа/2 релейни изхода аналогов BNC изход слот за MicroSD карта -30~+65Сº; за външен монтаж IP66 вградена гръмозащита 24Vac/50W
Подробни параметри:
Camera
Image Sensor 1/2.8" Progressive Scan CMOS E¬ective Pixel 1320K pixels Min. Illumination Color : 0.05 lux (F1.6, AGC On); B/W : 0.005 lux (F1.6, AGC On); 0 Lux with IR White Balance Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp AGC Auto / Manual S / N Ratio ≥ 50dB Digital Noise Reduction 3D DNR Backlight Compensation HLC / BLC Wide Dynamic Range Digital WDR Shutter Speed 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s Day & Night IR Cut Filter Digital Zoom 16X Privacy Masking Up to 24 zones, maximum 8 zones on a same image, multiple colors and mosaics optional Focus Mode Auto / Semiautomatic / Manual Enhancement Smart Defog: on / o¬
Lens
Focal Length 4.3 ~ 129.0mm, 30x Zoom Speed Approx 3s(Optical Wide-Tele) Angle of View 57.4-2.8 degree (Wide-Tele) Min. Working Distance 10 ~ 1,500mm(Wide-Tele) Aperture Range F1.6 ~ F5.0
Pan and Tilt
Smart tracking Support Pan / Tilt Range Pan: 360° endless; Tilt: -2° ~ 90° (Auto Flip ) Pan / Tilt Speed Pan Manual Speed: 0.1° ~ 160°/s, Pan Preset Speed: 160°/s Tilt Manual Speed: 0.1° ~ 120°/s, Tilt Preset Speed: 120°/s Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples Number of Preset 256 Patrol 8 patrols, up to 32 presets per patrol Pattern 4 patterns, with the recording time not less than 10 minutes per pattern Power-o¬ Memory Support Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan PTZ Position Display On / O¬ Preset Freezing Support Scheduled Task Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan/ Dome reboot/Self-test action/Alarm output
Infrared
Smart IR Support IR Distance Up to 120m IR Intensity Automatically adjusted, depending on the zoom ratio
Alarm
Alarm Input 7 Alarm Output 2 relay outputs, alarm response actions configurable Alarm Action Preset, Patrol, Pattern, SD/SDHC card recording, Relay output, Notification on Client
Input/ Output
Video Output 1.0V[p-p] / 75Ω, PAL / NTSC composite, BNC Audio Input Audio input (LINE input), 2 ~ 2.4V[p-p]; output impedance: 1KΩ, ±10% Audio Output Line level, impedance: 600Ω
Network
Ethernet 10Base-T / 100Base-TX, RJ45 connector Max. Image Resolution 1920×1080 Frame Rate 60Hz:30fps(1920×1080) 30fps(1280×960) 30fps (1280×720) Image Compression H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile ROI encoding Support 24 areas with adjustable levels Audio Compression G.711u /G.711a /G.726 Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE Simultaneous Live View Up to 10 Streams Three Streams Mini SD Memory Card Built-in SD/SDHC Slot, up to 32GB, support manual / alarm / edge recording User/Host Level Up to 32 users, 3 Levels: Administrator, Camera control, Live view only Security Measures User authentication(ID and PW); Host authentication(MAC address); IP address filtering
Integration
Application programming Open-ended API, support Onvif, PSIA and CGI Web Browser IE 7, IE 8, IE 9, Chrome 8 +, Firefox 3.5 +, Safari 5 +, support multi-language
General
RS-485 Protocols HIKVISION, Pelco-P, Pelco-D, self-adaptive Power 24 VAC: Max. 65W (heater: 45W) High-PoE: Max. 50W (heater: 20W) WorkingTemperature 24 VAC: -40°C ~ 65°C(-40°F ~ 149°F) High-PoE: -30°C ~ 65°C(-22°F ~ 149°F) Humidity 90% or less Protection Level IP66 standard TVS 4,000V lightning protection, surge protection and voltage transient protection Dimensions Φ245 × 399mm (Φ9.65” × 15.71”) Weight (approx.) 5.5kg(12.13Ibs)
Приложение за мобилни телефони Android и Apple, както и за компютри с операционна система Windows за системите за видеонаблюдение Hikvision можете да свалите от тук:
VIDEO
Демонстрация на PTZ камера при резолюция 2 мегапиксела и 30x оптично приближение:
